Diving Watch LSR Silicone Sealing System Design

Design Specifications for LSR Silicone Sealing Systems in Dive Watches

As professional underwater timing equipment, the waterproof performance of dive watches directly relates to product reliability and safety. In underwater environments at 300 meters or deeper, sealing systems endure extreme water pressure, temperature variations, and long-term chemical exposure. LSR silicone has become the core sealing material for high-end dive watches due to its exceptional elasticity and environmental resistance.

I. Operating Environment of Dive Watch Seals

1. Pressure Conditions

• Surface: 1 atm (101.3 kPa)
• 100m depth: 11 atm (1.1 MPa)
• 300m depth: 31 atm (3.1 MPa)
• 500m depth: 51 atm (5.1 MPa)
• Pressure cycles during diving: rapid compression and decompression

2. Temperature Variations

• Tropical surface water: 30-35°C
• Deep water (below thermocline): 4-10°C
• Rapid temperature changes: 35°C → 10°C within minutes
• Hot shower/sauna after diving: up to 60°C

3. Chemical Exposure

• Saltwater: 3.5% NaCl, pH 7.5-8.4
• Sweat: contains NaCl, lactic acid, urea
• Sunscreen: UV filters, zinc oxide, titanium dioxide
• Soap and detergent residues
• Chlorinated pool water

II. LSR Material Specifications for Dive Watches

1. Core Properties

2. Environmental Resistance

• Saltwater immersion (3.5% NaCl, 70°C×168h): volume change <3%
• Ozone resistance: 50 pphm×72h, no cracking
• UV aging: 340nm, 1000h, tensile retention >85%
• Hydrolysis resistance: 100°C×72h, property change <5%

3. Low-Temperature Performance

• TR-10 (temperature retraction): ≤ -50°C
• Cold flexibility at -40°C: no cracking after 100 bending cycles
• Glass transition temperature: ≤ -120°C

III. Seal Design Specifications

1. Case Back O-Ring

• Cross-section diameter: 1.5-2.5mm (depending on case size)
• Compression ratio: 18-25%
• Groove fill ratio: 80-90%
• Surface finish of groove: Ra ≤ 0.4μm
• O-ring hardness: Shore A 60-70

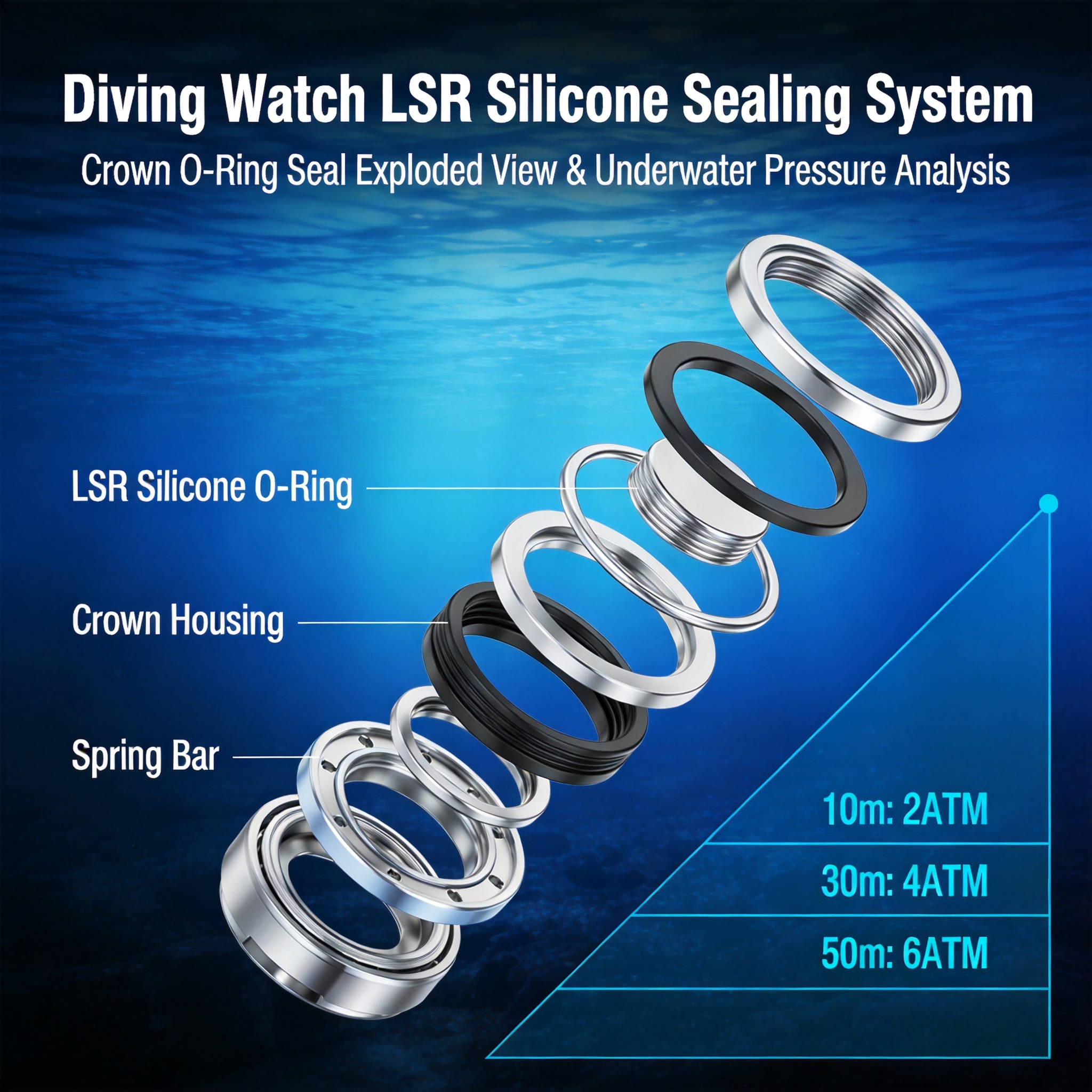

2. Crown Seal

• Multiple sealing lips (typically 2-3)
• Dynamic seal design: maintains seal during crown rotation
• Crown tube O-ring + crown internal O-ring dual seal
• Seal lubrication: silicone grease (compatible with LSR)

3. Crystal Gasket

• LSR gasket between crystal and case
• Uniform compression around full circumference
• UV-cured adhesive as secondary seal
• Gasket hardness: Shore A 50-60

4. Pusher/Button Seals

• Dynamic seals for chronograph pushers
• Multiple sealing lips with spring preload
• Stroke life: ≥ 10,000 actuations maintaining seal
• Seal friction force: 2-5N per pusher

IV. Manufacturing Process Control

1. O-Ring Production

• Compression molding or injection molding
• Dimensional tolerance: cross-section ±0.03mm, ID ±0.10mm
• Parting line flash ≤ 0.02mm
• 100% visual inspection under 10x magnification

2. Gasket Production

• LSR injection molding with precision mold
• Flatness ≤ 0.05mm
• Surface defects: none visible at 10x magnification
• Batch-to-batch hardness variation ≤ ±2 Shore A

3. Assembly Process

• Clean room environment (Class 10,000) for seal assembly
• Silicone grease application: controlled volume and distribution
• Compression verification after case back tightening
• Torque specification for case back screws: ±5%

V. Waterproof Testing

1. Production Line Testing

• Air pressure test: 3 bar for 1 minute, leak rate ≤ 0.01 mL/min
• 100% testing on production line
• Condensation test for moisture ingress detection

2. Type Testing

• ISO 6425 dive watch standard compliance
• Pressure testing at 125% of rated depth (375m for 300m-rated watch)
• 24-hour sustained pressure test
• Temperature shock test: 40°C → 5°C → 40°C cycling

3. Reliability Testing

• 10,000 crown rotation cycles with waterproof verification
• Salt spray test: 5% NaCl, 48 hours
• UV exposure: 340nm, 500 hours
• Hot/cold cycling: -20°C ↔ 70°C, 50 cycles

Dive watch LSR silicone sealing system design represents the pinnacle of precision sealing engineering, where every specification parameter is directly tied to diver safety underwater.
