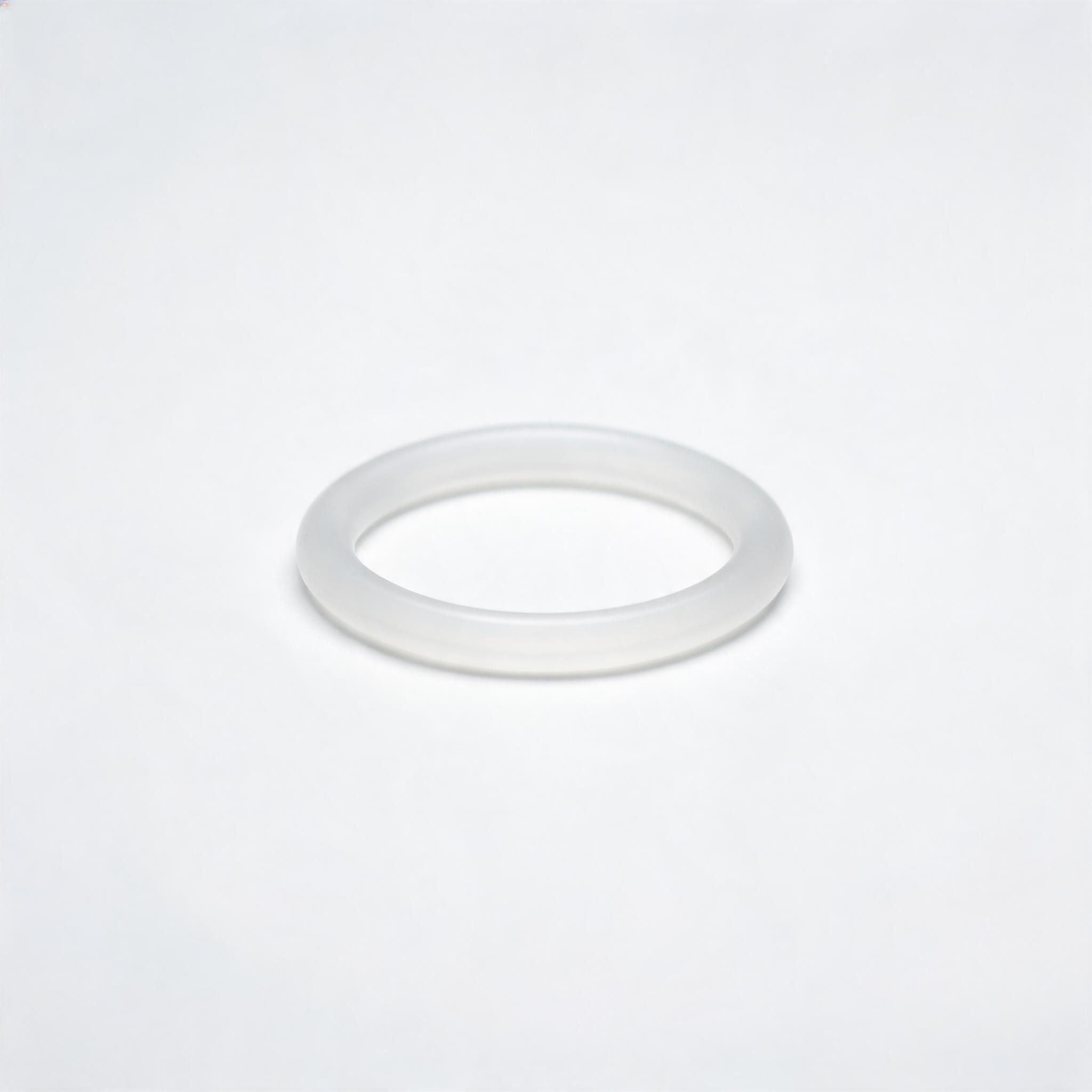

# LSR Waterproof Seal For Smart Lighting Controller

Product of 橡楚（湖北）橡胶有限公司

---

Product Overview

LSR Waterproof Seal For Smart Lighting Controller is a precision-molded liquid silicone rubber sealing component custom-engineered for the demanding operating environments of modern smart lighting systems. As a core LSR product manufactured by 橡楚（湖北）橡胶有限公司 (located at No. 54, Neihe Lane, Fankou Sub-district, Echeng District Economic Development Zone, Ezhou City, Hubei Province, China), this seal addresses the most common failure points of smart lighting controllers: water intrusion, dust contamination, thermal degradation, and long-term sealing performance degradation.

Unlike conventional rubber or plastic sealing gaskets, this LSR seal leverages the inherent properties of cured liquid silicone rubber to deliver consistent waterproof and dustproof protection across a wide range of ambient conditions. Designed to fit standard and custom smart lighting controller enclosure geometries, it maintains reliable sealing performance even with repeated assembly/disassembly for maintenance or firmware updates. Its low compression set and resistance to outdoor weathering make it suitable for both indoor installed and outdoor exposed smart lighting control systems, from residential smart garden lighting to commercial public street lighting control networks.

Technical Specifications

Material Properties

This sealing product is manufactured from 100% high-purity injection-molding grade liquid silicone rubber, with the following core material properties:

Physical Performance

Cured LSR seals deliver the following consistent physical performance for sealing applications:

Process Parameters

All our LSR seals for smart lighting controllers are produced via precision liquid injection molding (LIM), with the following controlled process parameters to ensure consistent part quality:

1. Injection pressure: 80–120 bar, adjusted based on part geometry and wall thickness
2. Mold temperature: 160°C–180°C
3. Curing time: 30–90 seconds, dependent on part thickness
4. Post-curing: 4 hours @ 150°C to remove residual volatile compounds
5. Tolerance control: Complies with ISO 3302-1 M2 precision tolerance standard for molded rubber products

Product Advantages

1. Long-term Stable Waterproof and Dustproof Protection

The inherent low surface energy of LSR creates a continuous, non-porous sealing surface that resists water penetration and prevents dust accumulation on seal contact surfaces. Unlike organic rubber seals that crack or deform after prolonged exposure to moisture and temperature cycles, our LSR seals maintain low compression set for over 5 years of outdoor use, avoiding the seal shrinkage or swelling that causes water intrusion in smart lighting controllers.

2. Excellent Environmental Compatibility

This LSR seal is resistant to UV radiation, ozone, acid rain, and common atmospheric contaminants, making it ideal for outdoor smart lighting applications. It does not crack, harden, or lose elasticity after prolonged exposure to direct sunlight, unlike general-purpose organic rubber seals that degrade within 2–3 years of outdoor installation. It is also resistant to common cleaning chemicals used for outdoor lighting maintenance, with no swelling or performance degradation.

3. Precision Compatibility with Enclosure Designs

Our liquid injection molding process can achieve tight tolerances down to ±0.05mm for complex seal geometries, including custom profile grooves, stepped sealing surfaces, and integrated mounting holes. This precision ensures a perfect fit between the controller base and cover, eliminating gaps that would compromise ingress protection. We can produce seals to match any custom enclosure design provided by smart lighting controller manufacturers.

4. Electrical Insulation Performance

LSR is an inherently excellent electrical insulator, with a dielectric strength of over 20 kV/mm. This seal does not compromise the electrical insulation performance of the smart lighting controller, and resists tracking and arcing even in high-humidity environments. It also has a low dielectric constant that does not interfere with wireless communication signals (Bluetooth, Wi-Fi, LoRa) commonly used in smart lighting systems.

5. Non-toxic and Odorless

Our LSR raw materials comply with RoHS and REACH environmental standards, with no added toxic heavy metals or phthalates. The seal does not release volatile organic compounds (VOCs) during use, making it safe for indoor residential and commercial smart lighting installations.

Applications

LSR Waterproof Seals For Smart Lighting Controllers are designed for a wide range of smart lighting system applications, including:

1. Outdoor public smart lighting: Street lighting controllers, tunnel lighting controllers, park landscape lighting control units, where seals need to withstand prolonged exposure to rain, snow, temperature extremes, and UV radiation. The IP67-rated sealing prevents water damage to the controller circuit board, extending the service life of the entire lighting system.
2. Residential outdoor smart lighting: Garden lighting controllers, pool lighting control units, courtyard lighting smart dimmers, where the seal is regularly exposed to lawn irrigation water and high humidity. The non-porous LSR material prevents mold growth and contamination of the seal surface.
3. Commercial indoor smart lighting: High-humidity indoor environment controllers, including bathroom smart lighting control panels, swimming pool area lighting controllers, kitchen lighting control units, where consistent moisture resistance is required.
4. Industrial smart lighting: Factory workshop lighting control systems, warehouse smart dimming controllers, port and terminal lighting control units, where the seal needs to resist dust, oil mist, and industrial atmospheric contaminants.
5. Solar-powered smart lighting: Off-grid solar street light controller enclosures, where the seal needs to withstand large daily temperature fluctuations and continuous exposure to sunlight without performance degradation.

Selection Guide

Hardness Selection

Hardness selection is based on your enclosure design and compression requirements:

• 30–40 Shore A: Recommended for applications requiring high sealing conformity to uneven enclosure surfaces, or for low-compression assembly designs. The soft seal compensates for minor flatness deviations in injection-molded plastic enclosures.
• 40–60 Shore A: General purpose recommendation for most smart lighting controller applications, balancing sealing conformity and compression resistance for long-term performance.
• 60–70 Shore A: Recommended for high-vibration environments, such as lighting controllers installed near roadways or industrial machinery, where the rigid seal maintains position and resists displacement under vibration.

Size Specifications

We offer two supply modes to meet different production needs:

1. Standard stock sizes: Available for common smart lighting controller enclosure dimensions, including square seals for 100x100mm enclosures, rectangular seals for 120x80mm enclosures, and circular seals for 60mm diameter enclosures. Contact our sales team for the full standard size list.
2. Custom sizes: We can produce seals to match any custom enclosure geometry and dimension provided by your engineering team, with no minimum order quantity for development trials.

Material Grade

Select the appropriate material grade based on your application requirements:

• Standard general grade: For most indoor and outdoor applications, complies with RoHS and REACH, meets standard IP65 ingress protection requirements.
• Low volatile post-cured grade: For enclosed indoor applications with strict VOC emission requirements, post-cured to reduce residual volatile content to less than 0.1%.
• Flame retardant V-0 grade: For applications with strict fire safety requirements, such as commercial building indoor smart lighting controllers, meets UL 94 V-0 flammability requirements.

Quality Assurance

橡楚（湖北）橡胶有限公司 operates a quality management system certified to ISO 9001, with strict quality control processes implemented from raw material incoming inspection to finished product outgoing inspection. Each batch of LSR seals undergoes the following quality checks before delivery:

1. Raw material verification: Each batch of LSR raw material is tested for hardness, density, and curing performance to ensure compliance with material specifications.
2. In-process dimensional inspection: Random dimensional checks are performed every 30 minutes during production to verify compliance with tolerance requirements.
3. Finished product visual inspection: 100% visual inspection to remove any parts with burrs, bubbles, or surface defects.
4. Performance testing: Each production batch undergoes compression set testing and water penetration testing to verify sealing performance.

We can provide material test reports (MTR) and certification documentation for each batch upon request. For customized products, we provide pre-production sample validation to ensure the seal matches your enclosure design before full-scale production.

---
