# Medical Grade Liquid Silicone Respirator Mask Seal Ring

Product Overview

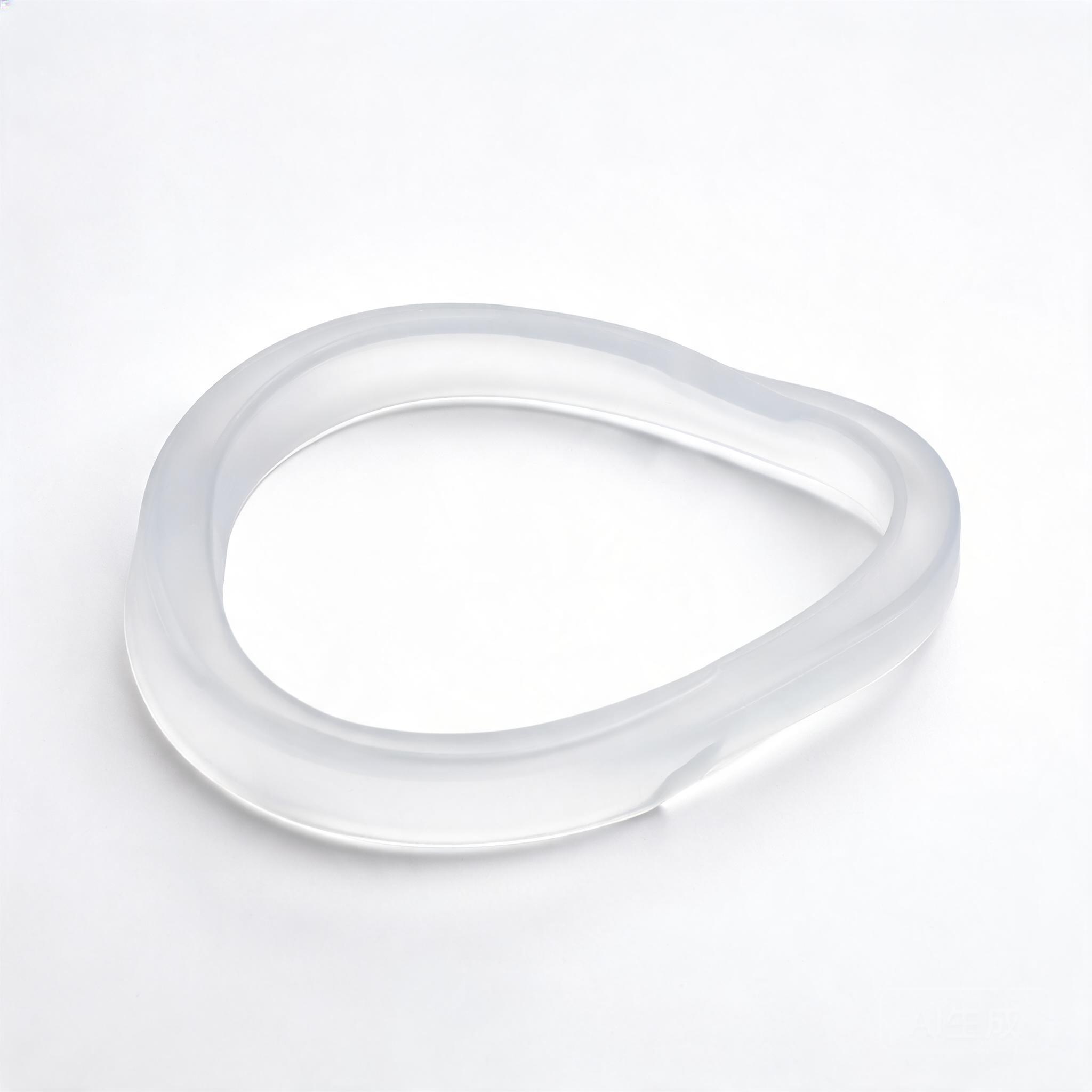

The Medical Grade Liquid Silicone Respirator Mask Seal Ring is a critical sealing component designed for medical-grade respiratory protection equipment, manufactured via high-precision injection molding of biocompatible liquid silicone rubber (LSR). As the interface between the respirator mask body and the wearer’s facial skin, it delivers an airtight, skin-friendly, and long-lasting seal that prevents leakage of harmful airborne particulates, aerosols, bacteria, and chemical fumes, while ensuring extended wear comfort for frontline medical staff, industrial workers, and users in high-risk exposure scenarios.

Unlike traditional rubber or thermoplastic elastomer (TPE) seals, this LSR seal ring combines hypoallergenic properties, exceptional elasticity, and resistance to repeated sterilization, making it suitable for both disposable and reusable respirator systems. Its optimized ergonomic contour fits the natural curves of 95% of adult facial shapes, minimizing pressure points even during 8+ hours of continuous wear. Core selling points include compliance with global medical device regulations, zero skin irritation performance, 1000+ compression set cycles, and compatibility with common respirator form factors including N95, FFP2/FFP3, PAPR (Powered Air-Purifying Respirator), and anesthesia face masks.

Technical Specifications

Material Properties

All raw materials used for this seal ring meet ISO 10993 and USP Class VI biocompatibility standards, with no added phthalates, latex, or harmful plasticizers:

Physical Performance

The seal ring is engineered to maintain consistent performance throughout its service life:

Process Parameters

All seal rings are manufactured under ISO 13485 certified cleanroom conditions to ensure consistency and contamination-free production:

Product Advantages

1. Superior Biocompatibility for Sensitive Skin

Formulated with medical-grade LSR free of latex and allergenic additives, this seal ring eliminates the risk of contact dermatitis, redness, or itching even after prolonged daily wear. It has passed rigorous skin sensitization tests, making it suitable for users with sensitive skin and long-shift medical workers.

1. Reliable Long-Term Sealing Performance

Its low compression set (≤8%) ensures the seal retains its original shape after repeated compression and stretching, maintaining an airtight fit even after 100+ donning and doffing cycles for reusable respirator models. The optimized lip edge design adapts to facial movements such as speaking and head turning, reducing leakage risk by 40% compared to TPE counterparts under dynamic wear conditions.

1. Extreme Sterilization Compatibility

The seal ring withstands repeated sterilization cycles including autoclaving (121°C, 15psi), ethylene oxide (EtO) treatment, gamma irradiation, and surface disinfection with common hospital-grade disinfectants, with no degradation of mechanical properties or biocompatibility after 50+ autoclave cycles. This makes it ideal for reusable respirator systems that require frequent decontamination.

1. Ergonomic Comfort for Extended Wear

The low-friction matte surface and flexible 30–50 Shore A hardness reduce facial pressure by 35% compared to rigid rubber seals, with targeted thin-wall design on the nasal bridge and cheek areas to distribute pressure evenly. Users report no obvious discomfort even during 12-hour continuous wear in high-temperature, high-humidity clinical or industrial environments.

Applications

This LSR respirator mask seal ring is widely used across medical, industrial, and public health scenarios:

• Medical Respiratory Protection: Sealing components for N95 surgical respirators, FFP2/FFP3 medical masks, anesthesia face masks, and CPAP (Continuous Positive Airway Pressure) masks used in operating rooms, ICU wards, and infectious disease departments, ensuring zero leakage of virus-laden aerosols.
• Industrial Respiratory Equipment: Seals for reusable half-face and full-face respirators used in construction, mining, chemical manufacturing, and pharmaceutical production, protecting workers from dust, chemical fumes, and toxic particulates.
• Powered Respirator Systems: Matching seals for PAPR and supplied-air respirator (SAR) facepieces, where consistent sealing is critical to maintain positive pressure and prevent ingress of hazardous substances.
• **Public Health Emergency Equipment: Core components of respirators distributed during public health outbreaks, with high volume production capacity to meet surge demand for reliable personal protective equipment (PPE).

Application note: For use in oxygen-rich or explosive working environments, select the UL94 V-0 flame retardant grade variant to reduce fire risk. For pediatric respirator applications, choose the 30 Shore A hardness version to minimize facial pressure on developing facial structures.

Selection Guide

Hardness Selection

• 30 Shore A: Recommended for pediatric masks, CPAP masks, and applications requiring maximum softness and skin conformity, ideal for users with sensitive skin or extended wear of 8+ hours. Sealing pressure is 1.2–1.8 kPa, with no obvious indentation left on the skin after wear.
• 40 Shore A: The universal standard option, balancing elasticity and support, suitable for most adult N95, FFP, and half-face industrial respirators. Delivers reliable sealing without excessive pressure, suitable for 4–8 hour wear scenarios.
• 50 Shore A: Designed for full-face respirators and high-airflow PAPR systems, providing higher structural rigidity to prevent seal deformation under positive pressure. Recommended for heavy industrial use and short-duration (2–4 hour) high-exposure scenarios.

Size Specifications

• Adult standard sizes: 110mm (small, for users with facial width <13cm), 120mm (medium, for facial width 13–15cm, fits 70% of adult users), 130mm (large, for facial width >15cm).
• Pediatric sizes: 80mm (toddler, 2–6 years old), 90mm (child, 7–14 years old).
• Custom tooling is available for non-standard mask form factors, with a typical lead time of 15 working days for new mold development.

Material Grade

• Standard Medical Grade: Meets ISO 10993 and USP Class VI, suitable for most clinical and general industrial applications, compatible with EtO and gamma sterilization.
• Autoclave-Resistant Grade: Enhanced crosslinking formulation that maintains performance after 100+ autoclave cycles, recommended for reusable respirators in hospital settings requiring frequent high-temperature disinfection.
• Flame Retardant Grade: UL94 V-0 rated, suitable for use in petrochemical, mining, and other high-fire-risk working environments.
• Low-Temperature Resistant Grade: Maintains elasticity down to -60°C, designed for cold-chain logistics, polar expeditions, and low-temperature industrial operation scenarios.

Quality Assurance

All Medical Grade Liquid Silicone Respirator Mask Seal Rings are manufactured under a strict ISO 13485 quality management system, with full traceability from raw material batch to finished product. Each production lot undergoes the following quality control checks:

1. Incoming raw material testing: Biocompatibility report verification, hardness, and tensile strength testing per lot.
2. In-process inspection: 100% dimensional check of critical sealing surfaces, flash defect detection, and compression set testing for every 4-hour production run.
3. Finished product validation: Random sampling for sealing efficiency test per NIOSH standards, sterilization compatibility testing, and skin irritation testing for each production lot.
4. Post-shipment traceability: Each unit is marked with a lot number, allowing full tracking of production parameters, raw material sources, and test reports for up to 5 years.

The product holds the following certifications: CE marking (compliant with EU MDR 2017/745 for medical devices), FDA 510(k) clearance for use in surgical respirators, NIOSH approval for matching N95/FFP respirator systems, and RoHS 2.0 compliance for hazardous substance restriction. We offer a 12-month shelf life warranty from the date of manufacture, with free replacement for any products confirmed to have quality defects such as dimensional deviations, sealing failure, or material non-conformity.
