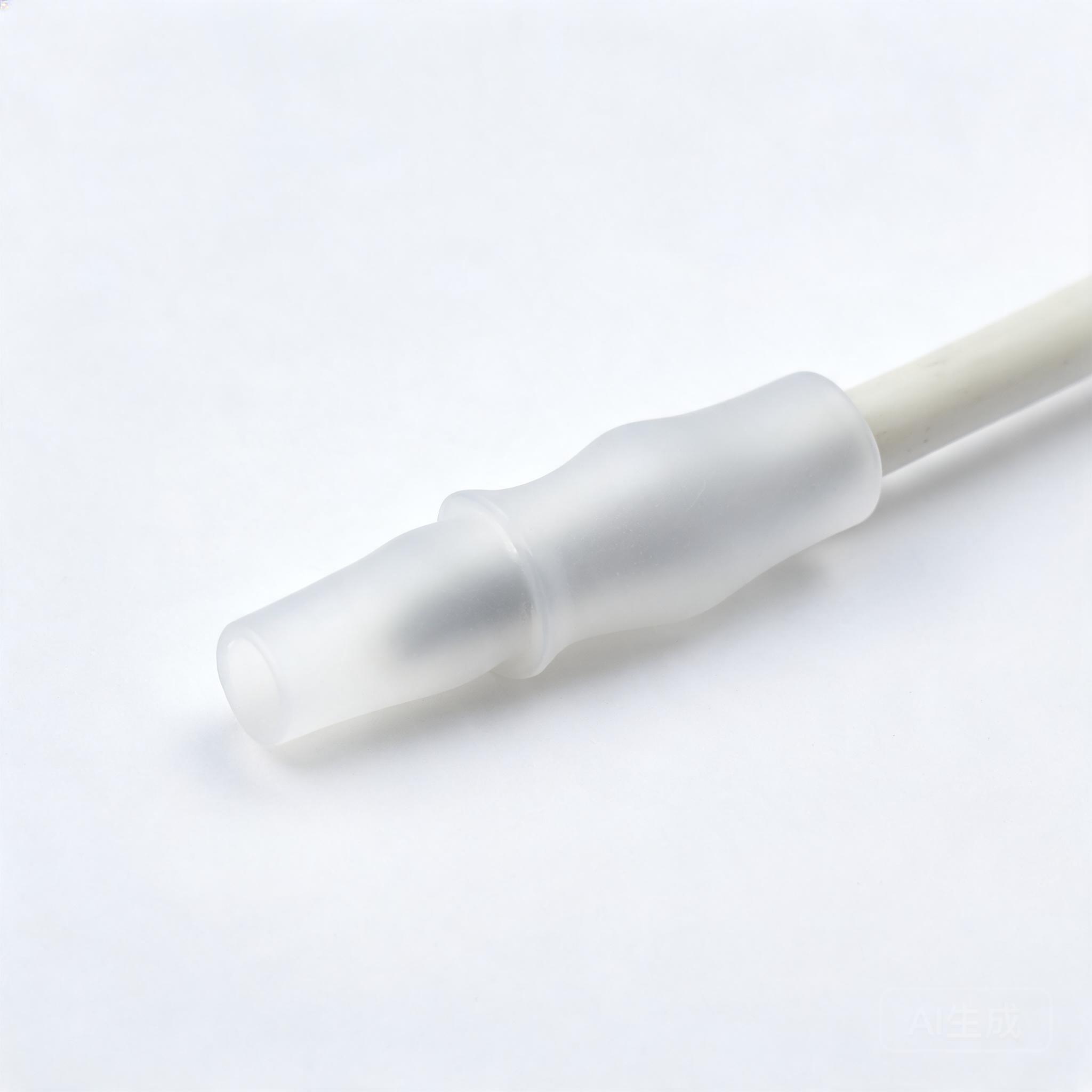

# High Insulation Weather-resistant Liquid Silicone Cable Terminal Sheath

Product Overview

The High Insulation Weather-resistant Liquid Silicone Rubber (LSR) Cable Terminal Sheath is a high-performance protective component injection-molded from medical and industrial-grade liquid silicone rubber, purpose-built to seal, insulate, and protect exposed cable terminals, connector interfaces, and conductor crimping points in low, medium, and high-voltage power systems. As a critical upgrade from traditional PVC, EPDM, or heat-shrink protective sleeves, this LSR sheath leverages the inherent high-performance characteristics of liquid silicone to eliminate common failure points of conventional terminal protection solutions, including cracking under temperature fluctuations, insulation degradation under UV exposure, and seal failure caused by moisture intrusion.

Core selling points of the product include a dielectric strength of up to 28 kV/mm, an operating temperature range spanning -60°C to +220°C, UL 94 V-0 flammability rating for fire-prone installation scenarios, and a 30+ year service life in outdoor exposed environments. Each sheath is precision-molded to match the dimensional profile of standard cable terminals (including copper lugs, aluminum connectors, and pre-insulated terminals) and can be customized for non-standard connector geometries, eliminating the need for on-site cutting or adjustment during installation. Unlike heat-shrink alternatives, this LSR sheath requires no heating tools for assembly: its high elastic resilience allows it to stretch up to 400% of its original inner diameter to fit over terminal assemblies, then contract tightly to form a seamless, IP68-rated waterproof seal without adhesives or additional fasteners.

Technical Specifications

Material Properties

The sheath is formulated from two-component, platinum-catalyzed addition-cure liquid silicone rubber with no volatile organic compounds (VOCs), low molecular weight siloxanes, or corrosive additives, making it compatible with copper, aluminum, and polymer cable insulation materials without causing contact corrosion or insulation aging. Key material properties include:

Physical Performance

The finished sheath exhibits consistent mechanical and electrical performance across its entire operating lifecycle, with critical performance metrics as follows:

Process Parameters

For customized sheath orders, the LSR injection molding process adheres to the following controlled parameters to ensure consistent part quality:

Product Advantages

1. Unmatched Long-Term Insulation Stability

Unlike PVC or EPDM sleeves, which experience a 30-50% drop in dielectric strength after 10 years of outdoor exposure due to plasticizer migration and polymer chain degradation, this LSR sheath retains >95% of its original insulation performance after 30 years of UV exposure, temperature cycling, and moisture contact. Its low dissipation factor minimizes dielectric loss in high-voltage systems, reducing the risk of partial discharge and thermal runaway at terminal connections.

2. Extreme Weather and Environmental Resistance

The sheath maintains full flexibility and sealing performance even at -60°C, eliminating the cracking and brittleness common to heat-shrink sleeves in cold climate deployments. At high temperatures up to 220°C, it does not melt, deform, or release toxic fumes, making it suitable for installation near high-heat equipment such as transformers and power distribution cabinets. It also exhibits excellent resistance to ozone, acid rain, salt spray, and most common industrial chemicals, supporting deployment in coastal, industrial, and desert environments.

3. Tool-Free, Reliable Sealing Installation

The high elastic resilience of LSR allows the sheath to be stretched over terminal assemblies without heating tools, reducing installation time by 60% compared to heat-shrink alternatives and eliminating fire risks associated with open-flame heating in enclosed spaces. The molded inner rib structure creates multiple independent sealing barriers, forming an IP68-rated waterproof seal even under continuous vibration, thermal expansion and contraction, or mechanical impact, preventing corrosion of terminal conductors caused by moisture and dust intrusion.

4. Fire Safety and Low Smoke Emission

With a UL 94 V-0 flammability rating, the sheath self-extinguishes within 10 seconds of removing an ignition source, with no flaming drips. In fire scenarios, it emits very low levels of smoke and no toxic halogenated gases, reducing safety risks for personnel and equipment in enclosed power distribution rooms, subway tunnels, and residential wiring systems.

Applications

The High Insulation Weather-resistant LSR Cable Terminal Sheath is deployed across a wide range of power system scenarios, including:

1. Power Transmission and Distribution Systems: Protection of overhead line terminals, pole-mounted transformer connections, and underground cable splice terminals in 1kV to 35kV distribution networks, particularly in cold regions, coastal areas with high salt spray, and high-altitude regions with strong UV radiation.
2. Renewable Energy Systems: Sealing of PV string combiner box terminals, wind turbine tower cable connections, and energy storage battery pack terminal interfaces, where long-term exposure to outdoor weather and frequent temperature cycling requires high insulation reliability.
3. Industrial and Mining Power Systems: Protection of motor lead terminals, mining cable connections, and chemical plant power distribution terminals, where resistance to oil, chemical corrosion, and explosive atmospheres is required.
4. Transportation Infrastructure: Sealing of high-speed railway signal cable terminals, subway power distribution system connections, and electric vehicle charging pile cable interfaces, where vibration resistance and long service life are critical.
5. **Residential and Commercial Wiring: Protection of air conditioner, water heater, and high-power appliance terminal connections, as well as outdoor lighting cable terminals, reducing fire risks caused by loose connections and insulation aging.

Selection Guide

Hardness Selection

• 50 Shore A: Recommended for irregularly shaped terminal assemblies, small-diameter cables, and scenarios requiring frequent disassembly for maintenance, as its higher flexibility allows easier installation and forms a tighter seal around uneven surfaces.
• 60 Shore A: The standard general-purpose option, suitable for most low and medium-voltage power distribution scenarios, balancing installation ease and mechanical wear resistance.
• 70 Shore A: Recommended for high-voltage systems, outdoor exposed overhead line terminals, and scenarios with high mechanical wear risks, providing higher puncture resistance and structural stability under long-term stress.

Size Specifications

To select the correct sheath size, measure three key dimensions of the terminal assembly:

1. Outer diameter of the cable insulation layer at the rear of the terminal
2. Maximum outer diameter of the terminal lug/connector body
3. Total length of the exposed terminal section including the crimping area

The inner diameter of the selected sheath should be 10-15% smaller than the smallest measured diameter of the assembly to ensure sufficient sealing pressure, while the sheath length should be 5-10mm longer than the exposed terminal section to fully cover the connection interface and the adjacent 5mm of cable insulation. Standard sizes are available for cable cross-sections from 1.5mm² to 630mm², with custom molding available for non-standard terminal geometries.

Material Grade

• Industrial Grade: Compliant with RoHS and REACH standards, suitable for most outdoor power distribution, industrial, and renewable energy applications, offering a cost-effective balance of performance.
• Low-Smoke Halogen-Free Grade: Formulated with zero halogen additives, compliant with EN 50267 low smoke toxicity requirements, recommended for indoor power distribution rooms, subway tunnels, and public building wiring systems.
• Medical Grade: Compliant with ISO 10993 biocompatibility standards, suitable for medical equipment power terminal protection and food processing facility wiring scenarios where non-toxicity is required.

Quality Assurance

All High Insulation Weather-resistant LSR Cable Terminal Sheaths are manufactured in an ISO 9001:2015 certified production facility, with a multi-stage quality control process covering incoming raw material testing, in-process dimensional inspection, and finished product performance validation:

1. Raw Material Testing: Each batch of LSR raw material is tested for viscosity, curing rate, and dielectric performance prior to production to ensure consistency with formulation specifications.
2. In-Process Control: 100% of molded parts undergo dimensional inspection using high-precision coordinate measuring machines (CMM) to ensure compliance with tolerance requirements, with real-time monitoring of injection molding parameters to eliminate part defects such as voids and incomplete filling.
3. Finished Product Testing: Each production batch undergoes sampling testing for dielectric strength, tensile performance, IP sealing rating, and flammability, with test reports available for customer review upon request.
4. Certifications: The product holds CE (LVD and EMC), UL 94 V-0, RoHS 2.0, REACH, and IEC 60502-2 certifications for medium-voltage power system components, with custom third-party testing available for specific regional market requirements.

We offer a 5-year limited warranty against material defects and manufacturing faults, with technical support available for installation guidance and custom sheath design for non-standard applications.
