Liquid Silicone Shower Head OEM From Xiangchu Rubber
橡楚编辑部 39 min read
Xiangchu (Hubei) Rubber Co., Ltd. is located in Ezhou City, Hubei Province, focusing on OEM manufacturing of liquid silicone rubber (LSR) products. We provide precision molding processing services for silicone shower head components, implement full inspection quality control, guarantee product quality based on ISO 9001 management system, and offer stable and reliable OEM service support.
Introduction
Liquid silicone rubber (LSR) has become the material of choice for modern shower head components, outperforming traditional rigid plastics and general-purpose rubber in hygiene, flexibility, temperature resistance, and user comfort. For global bathroom brands and sanitary ware manufacturers, partnering with a reliable LSR OEM supplier is critical to delivering consistent, high-quality products that meet regional safety and performance standards.

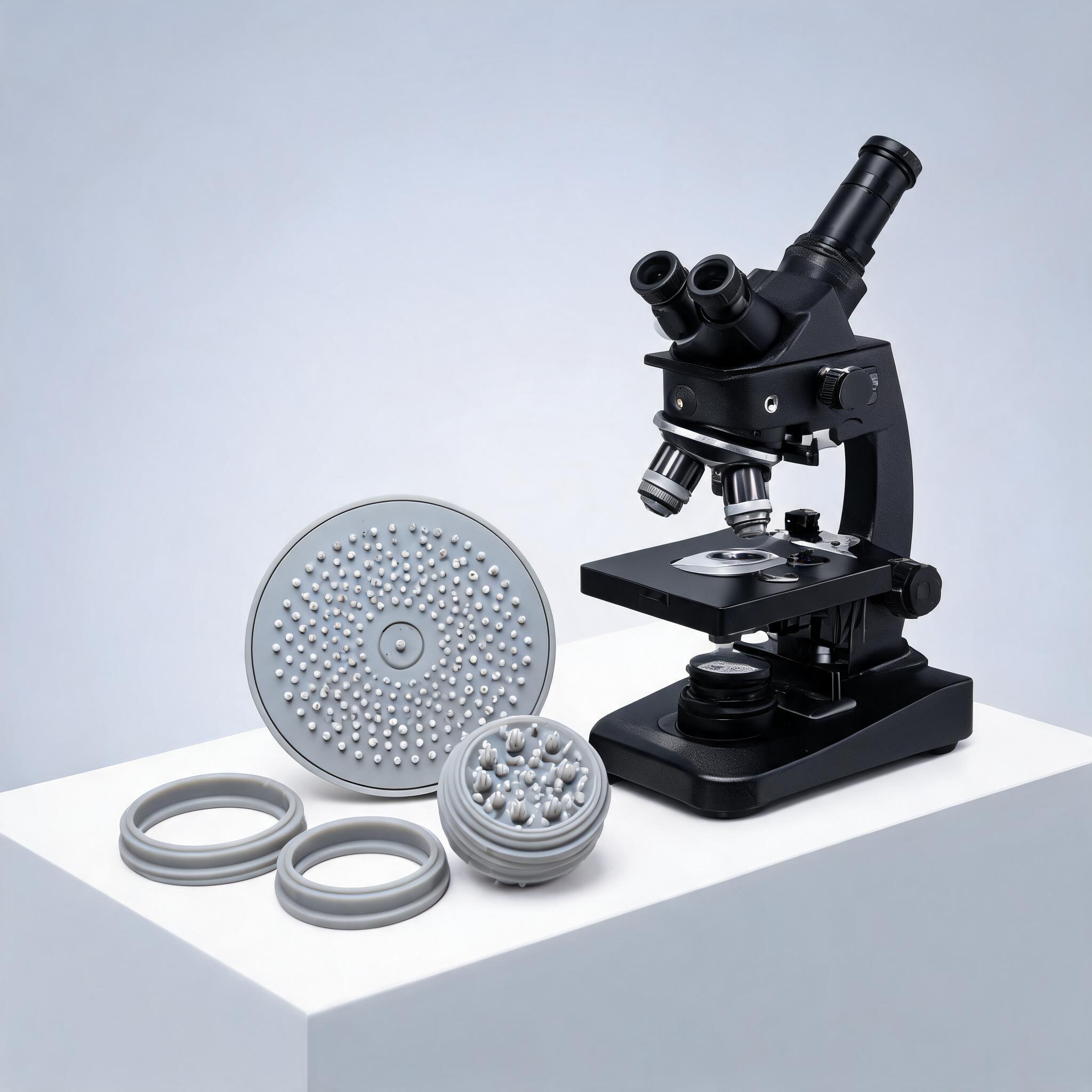

配图1
At 橡楚(湖北)橡胶有限公司, we specialize in custom liquid silicone rubber manufacturing for a wide range of consumer and industrial applications, with liquid silicone shower head components being one of our core OEM service lines. Located at 湖北省鄂州市鄂城区经济开发区凡口街道内河巷54号, we operate under an ISO 9001 certified quality management system, combining precision injection molding expertise with rigorous end-to-end quality control to meet the specific requirements of global OEM clients. This article breaks down the technical advantages of LSR for shower head applications, our manufacturing process, and the quality commitments that make 橡楚橡胶 a trusted partner for liquid silicone shower head OEM.
---
Why LSR is the Preferred Material for Modern Shower Head Components
LSR’s unique material properties address key pain points that traditional materials cannot resolve in shower head applications. Unlike solid silicone or thermoplastic elastomers (TPE), injection-molded LSR offers consistent material properties, complex geometry capability, and long-term durability in continuous humid, high-temperature environments.

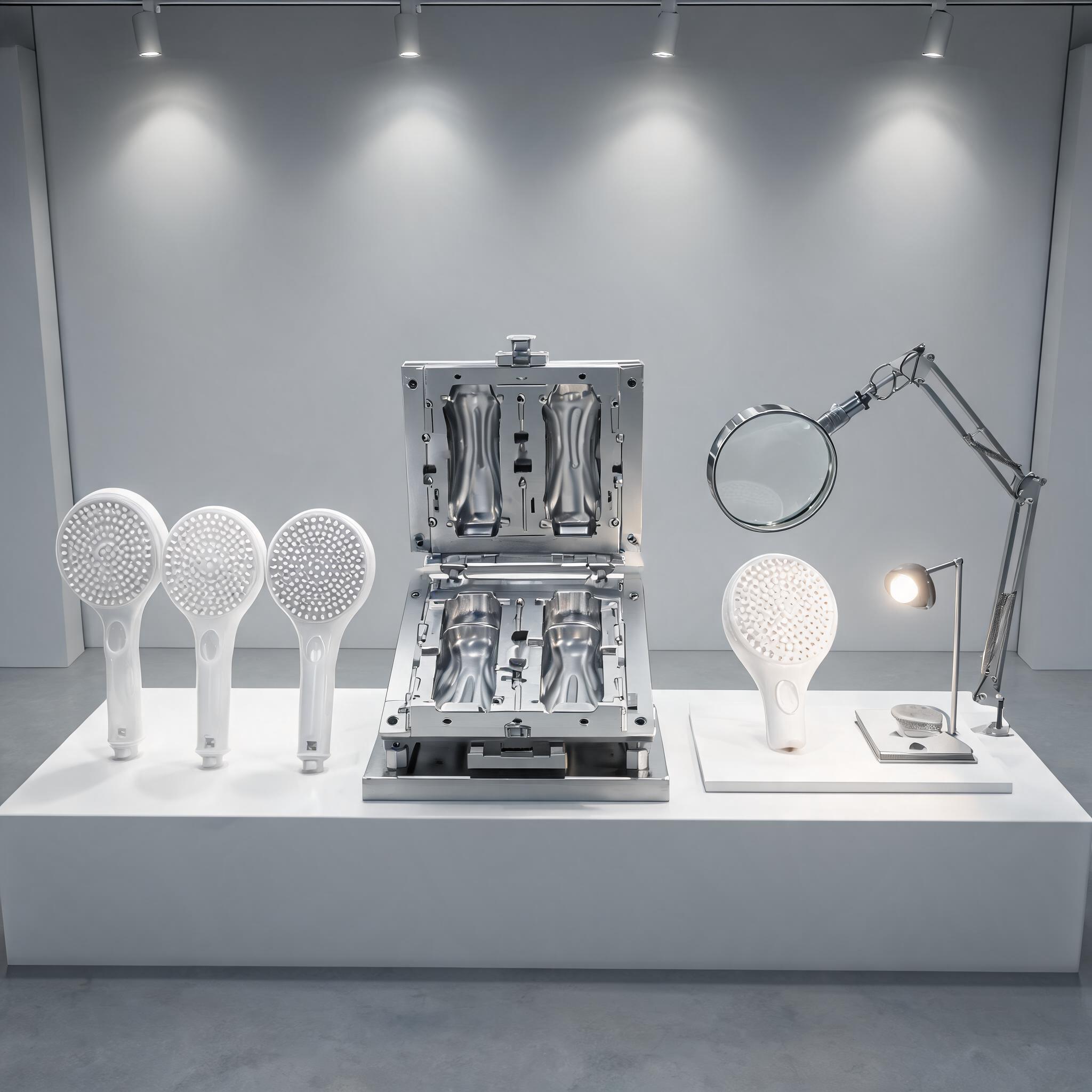

配图2
Key Material Properties for Shower Head Performance
Liquid silicone rubber is a two-part platinum-cured elastomer that offers a unique combination of properties ideal for contact with potable water and daily use:
PropertyPerformance ValueBenefit for Shower Head Components
Temperature resistance-40°C to 200°C continuous operating rangeResists deformation and degradation from hot tap water up to 80°C, no brittleness in cold water supply
Water absorption<0.01% by weightNo swelling, rotting, or material leaching after long-term immersion
Hardness range10 Shore A to 80 Shore A customizableSoft, flexible face seals and splash guards; rigid, dimensionally stable nozzle housings
Surface energyLow surface energyResists limescale and soap scum buildup, easy to clean
BiocompatibilityMeets FDA 21 CFR Part 177.2600 for food contactNon-toxic, no harmful leaching into potable water, safe for daily household use
Compression set<10% (23°C, 22h, 25% compression)Maintains sealing force for 10+ years of use, no leaks around threaded connections
Platinum-cured LSR also avoids the byproducts associated with peroxide-cured solid silicone, resulting in a odorless, pure material that meets global drinking water safety standards including NSF/ANSI 61 and GB/T 17219.
Common LSR Components for Shower Head OEM Projects
Shower heads integrate multiple LSR components that leverage the material’s unique properties. Most of our OEM projects cover the following core components:
Silicone nozzle inserts: Flexible nozzles allow users to dislodge limescale by simply rubbing the face of the shower head, eliminating clogging that plagues rigid plastic nozzles. We can mold micro-hole openings as small as 0.8mm with consistent flow distribution across the entire face.
Face seals and gaskets: LSR’s low compression set provides a permanent leak-proof seal between the shower head face and housing, eliminating the need for replacement gaskets over the product’s lifespan.
Flexible connection boots: For adjustable handheld shower heads, LSR connection boots allow continuous articulation without cracking or leaking, outperforming TPE and rigid rubber alternatives.
Anti-slip handle grips: Low-hardness LSR grips provide a non-slip surface even when wet, improving user comfort and safety.
Pulsation valve diaphragms: For rain shower heads and massage setting shower heads, LSR diaphragms maintain consistent flexibility to deliver reliable pressure and pulse cycling over years of use.
---
Precision LSR Injection Molding for Complex Shower Head Geometries
Shower head components require tight dimensional tolerances, consistent micro-feature replication, and zero surface defects to meet assembly and performance requirements. At 橡楚(湖北)橡胶有限公司, we use closed-volume LSR injection molding systems specifically configured for high-precision consumer product components, with process controls tailored to the unique requirements of LSR processing.
Mold Design and Fabrication for LSR Shower Head Components
Mold design is the foundation of consistent LSR molding. Unlike thermoplastic molding, LSR molding requires specific design adjustments to account for material flow, shrinkage, and curing. Our in-house mold engineering team follows these core principles for shower head component molds:
Shrinkage compensation: LSR has a typical shrinkage rate of 2-4% depending on part hardness and wall thickness. We map shrinkage rates for each hardness we use, adjusting mold cavity dimensions to ensure final parts meet client dimensional requirements within tolerance. For example, a 30 Shore A nozzle face will have a different shrinkage rate than a 70 Shore A nozzle housing, and we adjust each cavity individually to avoid post-mold rework.
Ventilation design: LSR is a low-viscosity material that requires effective venting to avoid trapped air, which causes surface bubbles and incomplete micro-hole filling. We use edge venting with 0.005-0.01mm gap clearance for micro-nozzle features, ensuring complete cavity filling without flash formation.
Modular mold design: For OEM clients offering multiple shower head SKUs, we design modular molds that allow for quick cavity changes, reducing setup time and minimum order quantities for low-volume custom projects.
Hardened steel tooling: We use P20 hardened steel for all production molds, which delivers a minimum 500,000-shot lifespan, ensuring consistent part quality over long production runs.
Process Control for Consistent Precision Molding
Our LSR injection molding lines are configured with automated material handling and process monitoring to eliminate human error and maintain consistent part quality. Key process controls we implement for shower head production include:
Automated material proportioning: We use closed-loop mixing systems that maintain a 1:1 ratio of Part A (base polymer) and Part B (curing agent) within ±0.5% accuracy, preventing incomplete curing or over-curing that leads to inconsistent hardness and dimension.
In-mold curing temperature control: LSR curing is temperature-dependent. We monitor mold temperature at multiple points across the tool, maintaining temperature within ±2°C to ensure uniform curing across all cavities. This eliminates soft spots or over-hardened areas that can cause performance failure.
Closed-loop injection pressure control: For micro-nozzle components with 0.8mm holes, we control injection pressure within ±1 bar to ensure complete filling of all micro-holes without flashing that requires secondary trimming.
Automated de-molding: All parts are de-molded by robotic systems to avoid stretching or damaging thin flexible components, maintaining dimensional accuracy right out of the mold.
The typical dimensional tolerance we hold for shower head components is ±0.05mm for features under 10mm, and ±0.1mm for overall part dimensions, which meets most global sanitary product assembly requirements.
---
Full Inspection Quality Control Process
Quality control is a core differentiator for OEM services, as defective silicone components can lead to leaks, product recalls, and damage to your brand reputation. At 橡楚(湖北)橡胶有限公司, we operate under an ISO 9001 certified quality management system, with a 100% full inspection protocol for all liquid silicone shower head components before shipment, rather than just statistical sampling.
In-Process Quality Checks
We integrate quality checks at every stage of production to catch deviations early, before they result in large batches of defective parts:
Raw material incoming inspection: All LSR raw material is tested upon arrival for hardness, viscosity, and curing characteristics. We only source raw material from established global silicone suppliers, and every batch comes with a material safety data sheet (MSDS) and certificate of analysis (CoA). We test for volatile organic compound (VOC) content to ensure compliance with potable water safety standards.
First article inspection (FAI): After mold setup and before full production run, we conduct a full first article inspection that includes dimensional checks, visual inspection, hardness testing, and function testing. We share FAI reports with clients for approval before starting mass production, ensuring alignment with your design specifications.
In-process hourly checks: Our quality technicians check 10 random parts from each production line every hour, verifying dimensions, surface quality, and hardness to catch any process drift. Any deviation from the specification triggers immediate process adjustment before production resumes.
100% Final Full Inspection
Before packaging and shipment, every single silicone shower head component goes through three layers of inspection:
Visual inspection: Trained quality inspectors check each part under high-intensity LED lighting to identify surface defects including bubbles, flash, blemishes, incomplete filling, and discoloration. For micro-nozzle components, we check each individual hole to confirm it is open and free of residual silicone.
Dimensional inspection: Critical dimensions (for example, outer diameter of sealing gaskets, hole spacing for nozzles) are checked for every part with custom gauges designed for the specific component. For high-volume production, we use automated vision inspection systems to reduce human error and speed up inspection.
Function testing: For functional components such as diaphragms and nozzles, we conduct 100% function testing:
Nozzle components: Water flow testing to confirm all holes have consistent flow and no blockages
Sealing gaskets: Compression testing to confirm correct sealing force and no permanent deformation
Diaphragms: Cycle testing to confirm consistent flexing performance
All non-conforming parts are separated and scrapped, and we only ship fully compliant parts to our clients. We also maintain full quality records for every production batch, allowing for traceability if required.
---
OEM Service Advantages of Partnering with 橡楚(湖北)橡胶有限公司
Beyond manufacturing and quality control, we structure our OEM services to meet the specific needs of global sanitary ware brands, from prototype development through mass production and after-sales support.
Flexible Service for Different Project Scales
We understand that OEM clients have different requirements based on product launch stage and market size, so we offer flexible terms to match your needs:
Prototype development: We can produce rapid prototype parts in 7-10 days using 3D-printed mold inserts for functional testing before you commit to full production tooling, allowing you to validate design and function quickly.
Low-volume custom production: For small-batch custom projects or niche market products, we accept minimum order quantities as low as 500 pieces, with no excessive tooling surcharges.
High-volume mass production: Our 3,000-square-meter production facility has 8 LSR injection molding lines with a monthly capacity of 1.2 million silicone components, capable of meeting large-volume ongoing orders with consistent lead times.
We also offer secondary operations including trimming, surface treatment, and assembly of silicone components to plastic or metal housing, reducing your supply chain complexity by allowing you to source fully assembled shower heads from a single supplier.
After-Sales Support for Worry-Free Collaboration
We prioritize long-term partnerships with our OEM clients, and our after-sales service is designed to resolve any issues quickly:
Lead time guarantee: We quote firm lead times for tooling and production, and we provide regular production updates so you can plan your inventory and shipping accurately. For urgent reorders, we offer expedited production to meet your demand.
Traceability and documentation: Every production batch comes with a full certificate of quality, material compliance documentation, and test reports to help you meet regulatory requirements in your target market.
Issue resolution: If any quality issues are identified after delivery, our team will investigate the root cause within 3 working days, provide a detailed report, and arrange replacement parts at no extra cost for any defective batches.
**Ongoing product improvement: We work with clients to adjust molding processes and designs based on field feedback, helping you improve product performance over time.
As an OEM-focused manufacturer, we also respect intellectual property rights: all client designs and tooling are kept confidential, and we never reuse client tooling for third-party production. Your design is secure with us.
Our contact information for OEM inquiries:
Address: 湖北省鄂州市鄂城区经济开发区凡口街道内河巷54号
Phone: 18071171144
Email: churubber@163.com
Quality certification: ISO 9001
---
Conclusion
Liquid silicone rubber has redefined the performance and user experience of modern shower heads, and a reliable OEM partner is key to unlocking these benefits for your brand. The combination of precision injection molding capability, 100% full inspection quality control, and flexible customer-focused service is what makes 橡楚(湖北)橡胶有限公司 a core choice for liquid silicone shower head OEM.
Whether you are developing a new line of luxury handheld shower heads, need a reliable supplier for high-volume mass production, or want to switch from traditional materials to LSR to improve product performance, our team has the technical expertise and manufacturing capacity to meet your requirements. We are committed to delivering consistent, high-quality components that meet your specifications, with transparent service and after-sales support that eliminates the hassle of offshore manufacturing.
Contact 橡楚橡胶 today to discuss your next liquid silicone shower head OEM project, and learn how our manufacturing expertise can support your brand growth.
