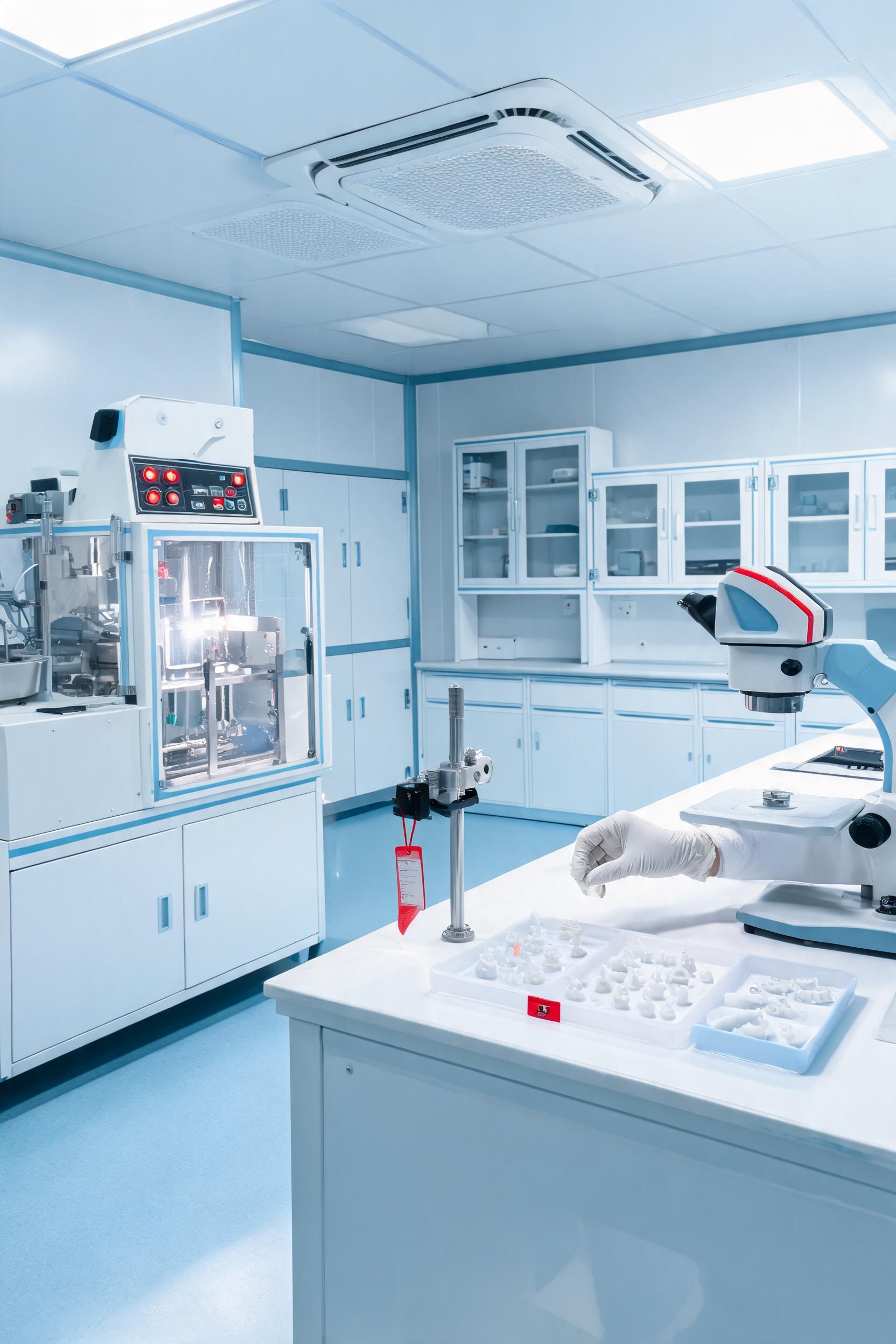

Explore Ezhou LSR Silicone Factory Clean Room

Introduction

Liquid Silicone Rubber (LSR) injection molding has become one of the most demanding manufacturing processes for high-precision silicone parts, used across medical devices, baby products, consumer electronics, and automotive sectors. Any contamination, particle inclusion, or dimensional inconsistency can compromise part performance, safety, and regulatory compliance. For many global buyers sourcing LSR components from China, location logistics and production facility quality are two top priorities when selecting a reliable supplier.

Located at No. 54, Neihe Lane, Fankou Street, Economic Development Zone, Echeng District, Ezhou, Hubei Province, 橡楚（湖北）橡胶有限公司 is just a 1-hour drive from Wuhan, China’s central transportation hub, making it easily accessible for raw material supply chain management and international cargo distribution. At the core of our precision LSR manufacturing capabilities is our class 100,000 clean room, often called the “dust-free heart” of our factory that underpins every consistent, high-quality LSR injection molded part we produce. In this article, we will take an in-depth look at how our clean room is designed, operated, and maintained to meet the strict requirements of LSR precision injection molding, and why it is a non-negotiable foundation for consistent part quality.

Core Principles: Why a Clean Room Is Non-Negotiable for LSR Precision Injection Molding

Unlike general solid silicone rubber compression molding, LSR injection molding relies on low-viscosity liquid raw material injected into closed molds at high pressure to form ultra-precise parts. Even micro-level contaminants can cause irreversible defects that affect part function and safety.

The Unique Vulnerabilities of LSR Processing to Contamination

Liquid silicone rubber has an initial viscosity ranging from 100,000 to 1,000,000 mPa·s, far lower than solid silicone compounds. This low viscosity allows foreign particles to disperse easily throughout the material before crosslinking, rather than being trapped in specific areas. For precision parts such as medical syringe gaskets, electronic connector seals, and baby nipple shields, even a 50μm particle can cause:

• Surface blemishes that require secondary finishing or result in part rejection
• Compromised sealing performance for fluid or gas applications
• Regulatory non-compliance for medical and food contact products
• Reduced part lifespan due to stress concentration around contaminant inclusions

Table 1 below summarizes the impact of different particle sizes on common LSR precision part types:

Clean Room Classification Standards for LSR Injection Molding

Clean rooms are classified based on the number of particles per cubic meter of air at specified particle sizes, per ISO 14644-1 standards. For LSR precision injection molding, the required clean room class varies based on the end application:

• General industrial LSR parts: Class 100,000 (ISO 5) minimum
• Medical and food contact LSR parts: Class 10,000 (ISO 4) for critical applications
• Implantable medical LSR parts: Class 1,000 (ISO 3) or higher

At 橡楚（湖北）橡胶有限公司, our main clean room for LSR precision injection molding is certified Class 100,000, with a dedicated 10,000 Class zone for critical medical and food contact components. This classification aligns with the requirements of most global customers, and allows us to balance production cost with quality consistency.

Design and Infrastructure of 橡楚（湖北）橡胶有限公司’s Dust-Free Clean Room

The 1-hour proximity to Wuhan gives us unique logistics advantages for raw material delivery and facility construction, as key HVAC and clean room equipment can be sourced and installed quickly from Wuhan’s industrial supply chain. Our clean room was designed from the ground up specifically for LSR injection molding, not retrofitted from a general production space, to address the unique requirements of LSR processing.

Air Handling and Filtration System

The core of any clean room is its air handling system, which maintains constant positive pressure, controlled temperature and humidity, and low particle counts. Our system is designed with the following specifications:

Unlike many small LSR manufacturers that only filter air in the general production area, we install local HEPA filtration units above each injection molding machine, providing an extra layer of particle capture directly at the point where LSR is exposed to air during material loading and mold opening.

Material Flow and Personnel Flow Design

Contamination can easily enter the clean room through personnel or incoming materials, so our layout is designed to separate and control these two flow paths to eliminate cross-contamination:

1. Personnel flow: All personnel must follow a multi-stage cleaning process before entering the production area:

• Change out of street clothes and store in personal lockers in the antechamber
• Wash hands with antimicrobial soap and dry with lint-free towels
• Put on clean room-specific garments: hairnet, beard cover (if applicable), face mask, anti-static clean suit, boot covers, and nitrile gloves
• Pass through an air shower for 30 seconds to remove loose particles from clothing before entering the main clean room
• No outer garments, food, drink, or personal electronic devices are allowed in the main clean room at any time

1. Material flow: All raw materials, molds, and tools enter through a separate material airlock, with the following process:

• Outer packaging is removed from raw LSR barrels in the external loading area to prevent cardboard dust from entering
• Barrels and tool surfaces are wiped down with 70% isopropyl alcohol to remove surface contaminants
• Materials are placed in the material airlock, which goes through a 5-minute air purge before being moved into the clean room
• Finished parts exit the clean room through the same material airlock, preventing backflow contamination

Daily Operation and Quality Control of the Clean Room

A well-designed clean room only delivers consistent quality if it is properly operated and maintained. At 橡楚（湖北）橡胶有限公司, we follow strict SOPs (Standard Operating Procedures) and regular testing to ensure our clean room always meets classification requirements, as part of our ISO 9001 certified quality management system.

Routine Monitoring and Testing Protocols

We conduct regular particle counting and environmental monitoring to document clean room performance, with testing frequency aligned with ISO 14644-2 standards:

• Continuous monitoring: Real-time temperature, humidity, and pressure differential sensors are installed throughout the clean room, with data logged automatically every 15 minutes. Alarms trigger if any parameter goes outside the specified range, allowing our team to address issues immediately.
• Daily particle testing: Our quality team tests particle counts at 5 fixed locations in the production area every production day, testing for 0.3μm and 0.5μm particle sizes.
• Monthly HEPA filter integrity testing: We conduct DOP (dioctyl phthalate) leak testing for all HEPA filters once per month to identify any leaks or damage that could compromise filtration efficiency.
• Annual third-party certification: We invite an independent third-party testing institute to audit and certify our clean room classification once per year, with a full report available to customers upon request.
• Microbial testing: For our food contact and medical grade LSR production zone, we conduct weekly surface microbial testing and monthly air microbial testing to ensure compliance with food safety and medical device regulatory requirements.

Table 2 below shows a typical daily particle count test result from our clean room, compared to Class 100,000 (ISO 5) standards:

Regular Maintenance and Contamination Prevention

Beyond monitoring, we implement a scheduled maintenance program to keep our clean room operating at peak performance:

1. Filter replacement schedule: Pre-filters are replaced every 3 months, medium-efficiency filters every 6 months, and HEPA filters every 2-3 years, or immediately if a leak is detected during testing. We never extend filter life beyond this schedule to cut costs, as compromised filtration directly leads to part defects.
2. Daily cleaning protocols: All work surfaces, machine exteriors, and floors are wiped down with lint-free cloths and isopropyl alcohol at the end of each production shift. Floors are mopped with antimicrobial cleaning solution daily.
3. Full clean room deep cleaning: Once per month, we conduct a full deep clean of all surfaces, equipment, and storage areas, including cleaning under machinery and inside storage cabinets. The clean room is fully purged with filtered air for 2 hours after deep cleaning before production restarts.
4. Personnel training: All clean room personnel complete 40 hours of training on clean room operating procedures, contamination prevention, and proper garment use before they are allowed to work in the clean room. Refresher training is conducted every 6 months to reinforce best practices.

How the Clean Room Supports Consistent LSR Precision Injection Molding Quality

The investment in our dust-free clean room directly translates to tangible quality benefits for our customers, reducing defect rates and ensuring compliance with global regulatory requirements.

Reduced Defect Rates and Lower Production Costs

One of the most common causes of LSR part rejection is surface contamination and particle inclusions. Before we built our dedicated clean room, our average rejection rate for precision LSR parts was around 3.2%, with more than 60% of rejections caused by contamination-related defects. After moving production into our current clean room, our average rejection rate dropped to 0.8%, with only 12% of rejections related to contamination. This reduction in defects not only improves our on-time delivery rate, but also allows us to keep production costs stable for our customers, avoiding the cost of rework or wasted material.

For example, for a 50,000 piece order of precision silicone valve seals for an automotive customer, the defect rate reduction saves approximately 1,200 rejected parts, which translates to consistent supply and no unexpected delays for the customer.

Compliance with Global Regulatory Requirements

For customers producing LSR parts for medical, food contact, and baby product applications, clean room manufacturing is a mandatory regulatory requirement in most European and North American markets. Our clean room operations are fully documented, and all monitoring and testing reports are stored for a minimum of 5 years, allowing us to provide full traceability to our customers to support their regulatory submissions.

As an ISO 9001 certified manufacturer, all our clean room processes are audited annually as part of our quality management system certification, ensuring consistent adherence to our documented procedures.

Enabling Production of Ultra-Precision Miniature LSR Parts

As consumer electronics and medical devices trend toward smaller, more compact designs, demand for miniature LSR parts with dimensions as small as 1mm and tolerances as tight as ±0.01mm is growing. For these parts, even a 10μm particle can alter the final dimension or surface finish enough to make the part unusable. Our clean room environment allows us to consistently produce these ultra-precision parts, with a 99.2% first-pass yield, meeting the tight tolerance requirements of our customers.

Table 3 below shows the dimensional consistency we can achieve for miniature LSR parts produced in our clean room, compared to parts produced in a non-clean room environment:

Conclusion

The 1-hour proximity of 橡楚（湖北）橡胶有限公司 to Wuhan gives us natural logistics advantages for raw material supply and international distribution, but our greatest competitive advantage is the investment we have made in our clean room, the dust-free heart of our LSR precision injection molding operations. From initial design and infrastructure to daily operation, monitoring, and maintenance, we have built our clean room to meet the strictest requirements for LSR precision manufacturing, ensuring consistent quality, low defect rates, and regulatory compliance for our global customers.

As a leading LSR manufacturer based in Ezhou, Hubei, we are committed to continuous improvement of our production facilities and quality management systems. Whether you are sourcing standard LSR components or custom precision molded LSR parts for critical applications, our clean room manufacturing capability provides the solid foundation you need for reliable, consistent supply.

For more information about our LSR production capabilities or to arrange a factory visit (we are just 1 hour from Wuhan Tianhe International Airport), contact us at:

• Address: No. 54, Neihe Lane, Fankou Street, Economic Development Zone, Echeng District, Ezhou, Hubei Province, China
• Phone: +86 18071171144
• Email: churubber@163.com

We hold ISO 9001 certification and are ready to support your LSR sourcing needs.
